Factory Direct Supply Electric Power Corn Variable Direction Conveyor Design Food Grade Belt Conveyor
Application
This product is suitable for candy, pistachios, peanuts, nuts, almonds, melon seeds, jelly, raisins and other packaged leisure food; frozen, pet food, puffed food, large shell nuts, hardware, plastic pellets and other granular, flake, strip, round and other packaged materials turning conveyor. Turning conveyor is in the material long-distance conveying needs to change the material conveying direction of the demand for equipment.
For bagged materials or bulk materials he is more conducive to the material in the conveying process to turn in an orderly manner. Effectively solve the turning roller turning chain due to the turning process roller gap changes or chain plate gap changes caused by the clip material injury material and other problems in the material conveying process through the guard plate or guardrail and other auxiliary equipment to realize non-destructive conveying.
Technical specification
| Product Name | Variable Direction Conveyor |
| Model | LS-WD90M750-01 |
| Conveying width | 750mm |
| Turning angle | 90° |
| Conveyor power | 250W |
| Belt conveying speed | ≥20m/min |
| voltage | 220V |
| Package size | 1450(L)*1350(W)*1050(H) |
| Machine Weight | 155 |
| Net Weight | 180 |
Product Feature
1. It can change the structure according to actual needs to achieve 30 degrees, 45 degrees, 90 degrees and even 180 degrees of steering conveying function.
2. Different structures can be used to manually or automatically adjust the transmission speed;
3.304 Stainless steel frame, food-grade PVC conveyor belt;
4. Can change the direction of transmission;
5. Simple structure, simple operation;
6. Low failure rate, easy maintenance;
Product Tags:
|
|

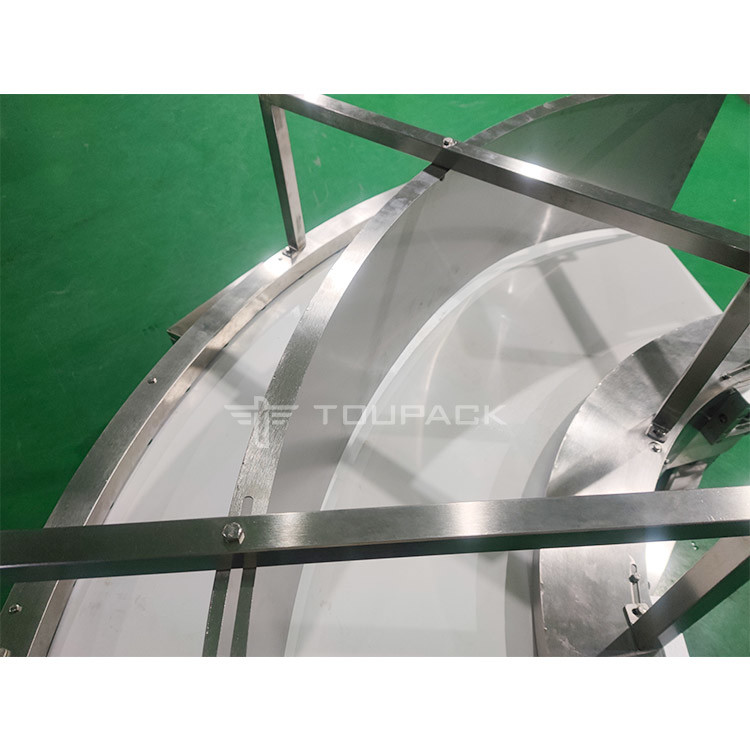

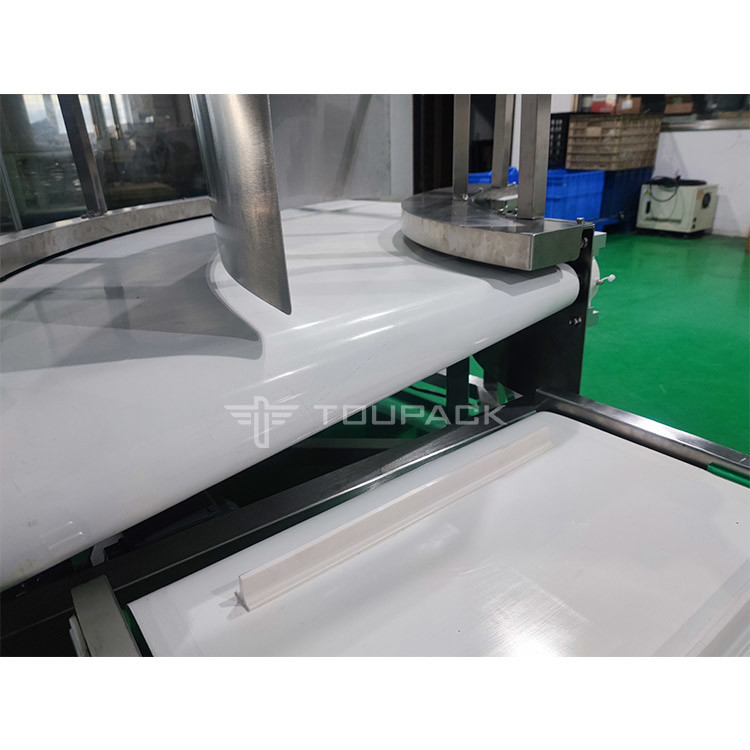

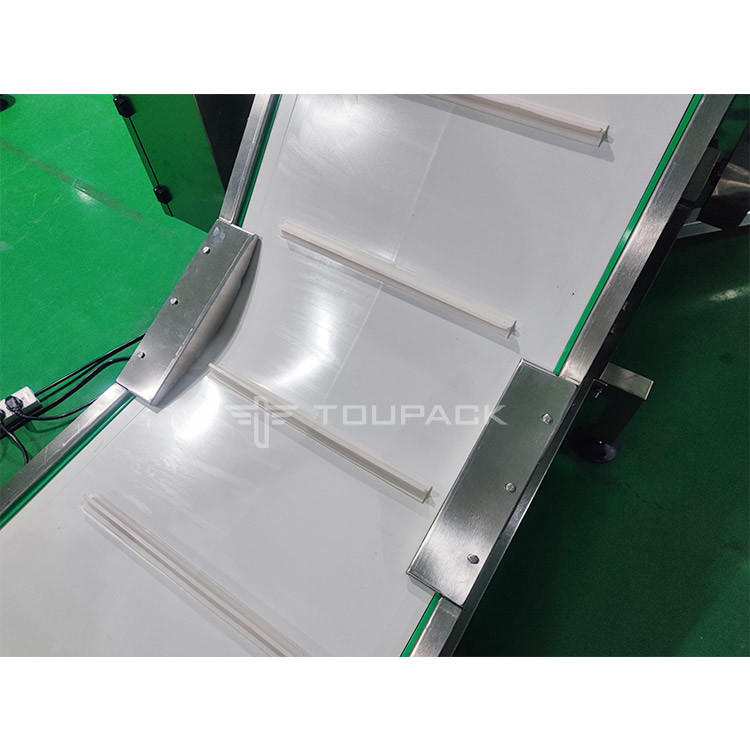

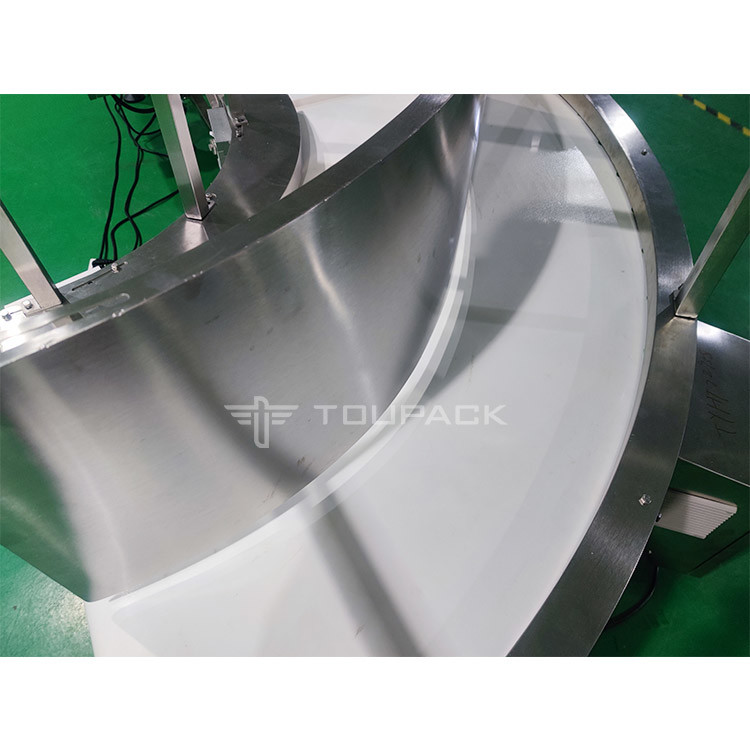

Food Grade Stainless Steel Belt Conveyor Electric Power Corn Variable Direction Conveyor Images
|
